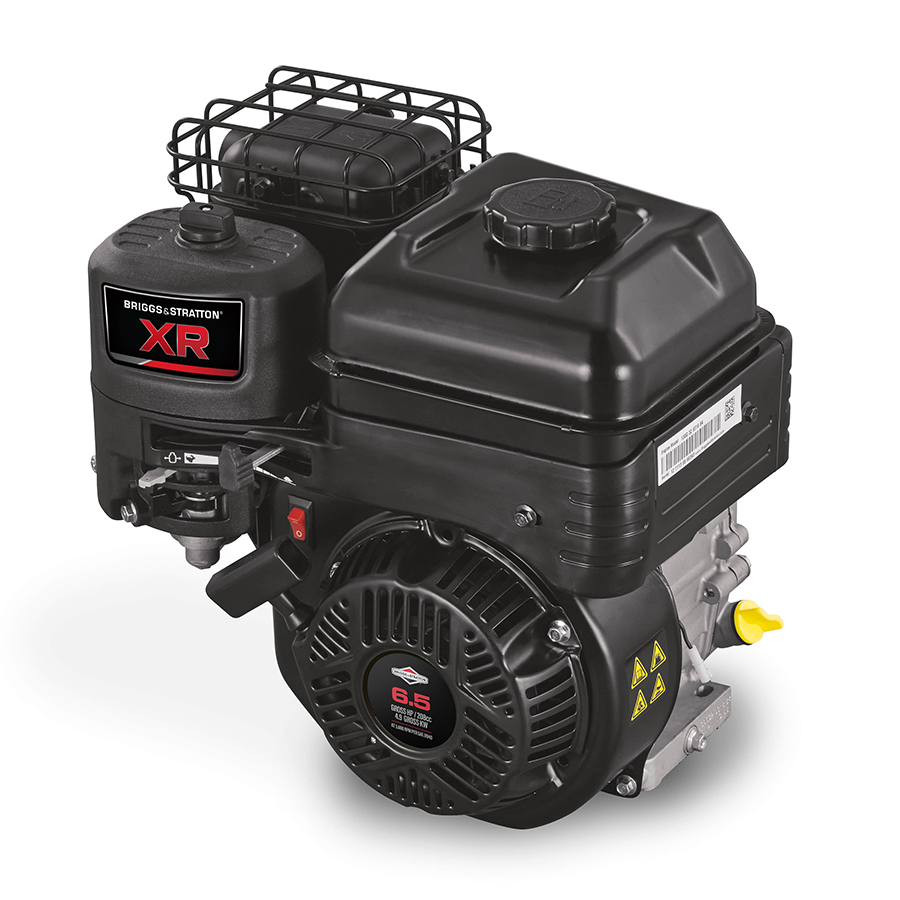

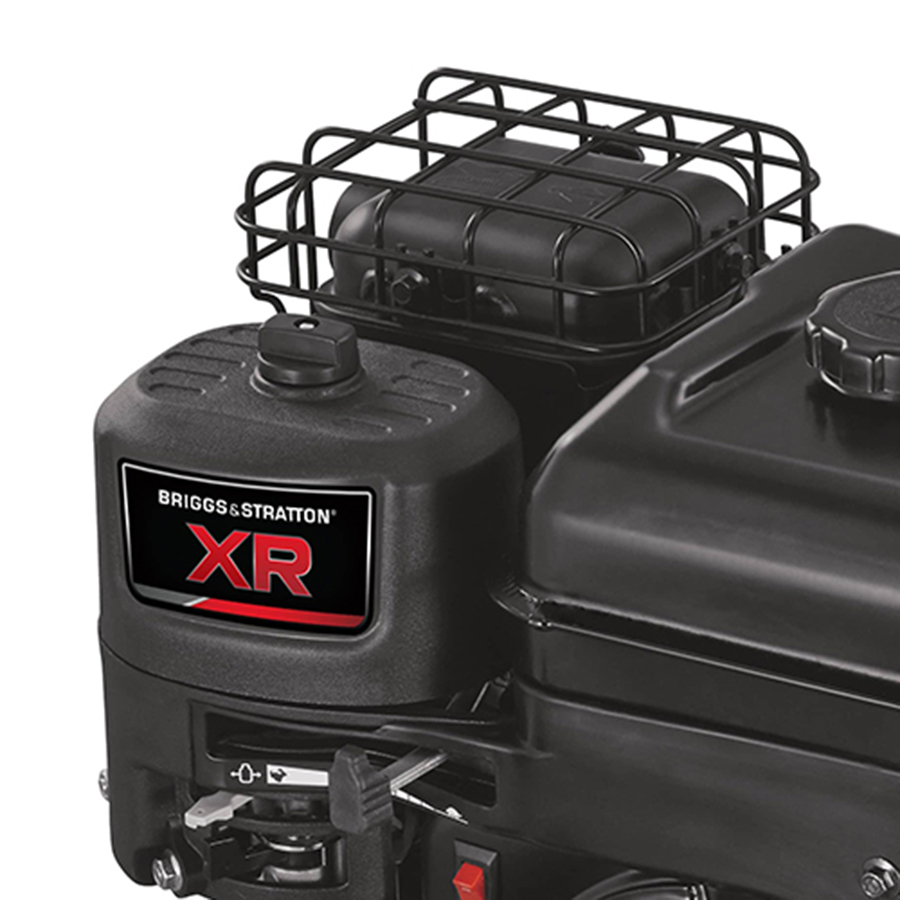

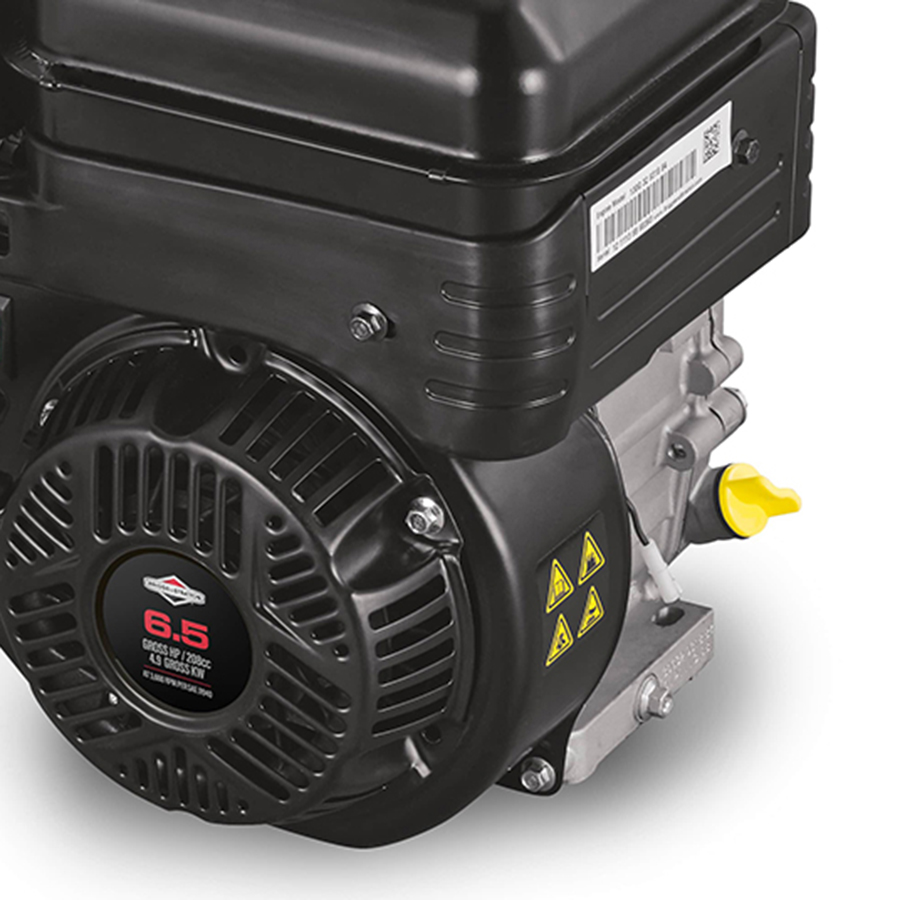

XR 950 M13 Engine Horizontal 6.5 HP

Engine Type

Single Cylinder, 4-Stroke, Air Cooled, Ohv (Overhead Valve)

Model Number

130g/Xr950

Gross Torque (Nm) @2600 Rpm

12.9

Gross Power

4.7kw/6.5hp $43600 Rpm

Displacement (Cc)

208

Cylinder

Cast Iron Sleeve

Bore & Stroke (Mm)

68.3 X 55.9

Fuel Tank Capacity

3.1

Oil Capacity (L)

0.6

Dry Weight (KG)

16.0

Dimensions L x W x H(Mm)

321 X 376 X 346

Features

Lo-Tone TM Muffler, Dual Ball Bearing, Forged Iron Crankshaft

Optional

Oil Bath Air Cleaner, 2:1 Gear Reduci1on, 6:1 Gear Reduction, 12v Starter(1.5a8t3a), Ultra Low Mount Air Cleaner
